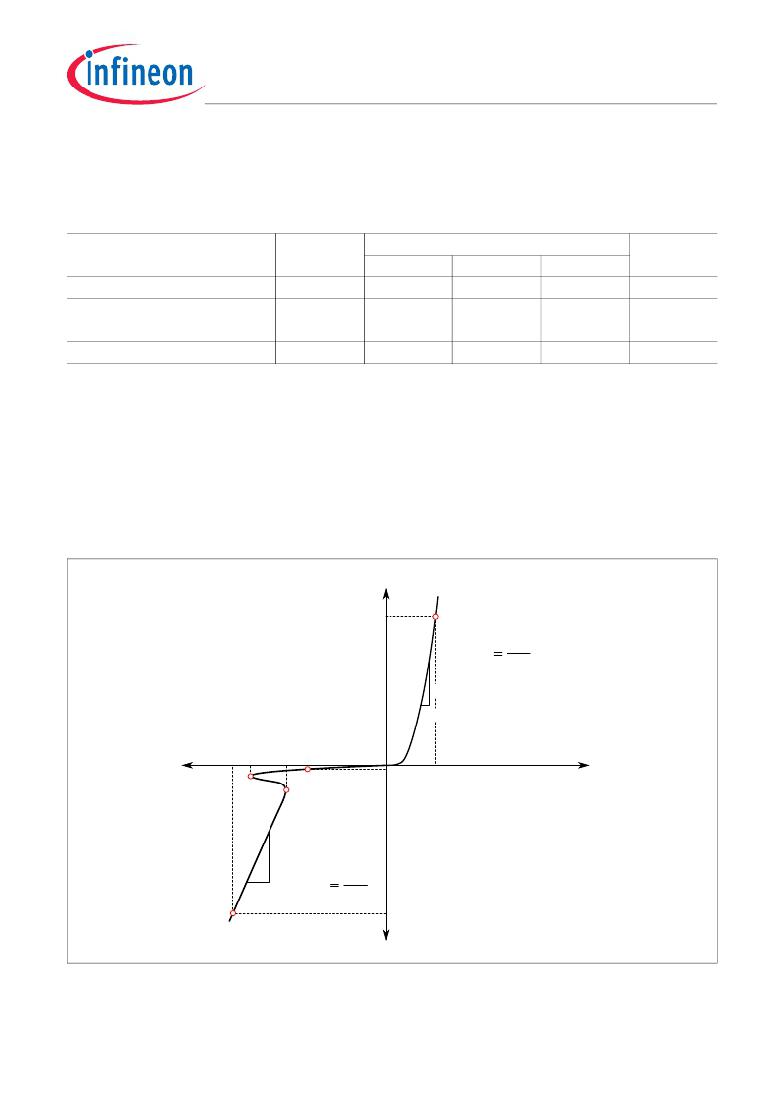

ESD5V5U5ULC
Ultra-low Capacitance ESD / Transient / Surge Protection Array
1
1.1
Ultra-low Capacitance ESD / Transient / Surge Protection Array
Features
?
?
?
?
?
?
?
ESD / Transient protection of high speed data lines exceeding
– IEC61000-4-2 (ESD): ±25 kV (air / contact)
– IEC61000-4-4 (EFT): ±2.5 kV / ±50 A (5/50 ns)
– IEC61000-4-5 (surge): ±6 A (8/20 μ s)
Maximum working voltage: V RWM = 5.5 V
Extremely low capacitance C L = 0.45 pF I/O to GND (typical)
Very low dynamic resistance: R DYN I/O to GND = 0.2 ? (typical)
Very low reverse clamping voltage: V CL = 9 V (typical) at I PP = 16 A
Protection of V BUS with one line freely selectable
Pb-free (RoHS compliant) package
1.2
Application Examples
?
?
?
Protection of all I/O and V BUS lines in dual USB2.0 ports
10/100/100 Ethernet
DVI, HDM, FireWire
1.3
Product Description
Pin 6
Pin 5
Pin 4
Pin 1
Pin 3
Pin 4
Pin 5
Pin 6
SC74
Pin 1
Pin 2
Pin 3
GND
Pin 2
a) Pin configuration
b) Schematic diagram
ESD5V5U5ULC_PinConf_and_SchematicDiag.vsd
Figure 1
Table 1
Pin Configuration and Schematic Diagram
Ordering Information
Type
ESD5V5U5ULC
Final Data Sheet
Package
SC74
Configuration
5 lines, uni-directional
4
Marking code
20
Revision 1.2, 2013-02-07
